Riyadh Metro, Saudi Arabia

News - Polymet Industries LLC - RAK

Riyadh metro is a rapid transit system under construction in Riyadh, Saudi Arabia. The metro is a part of the Riyadh Public Transport Project (RPTP).

The RPTP will be the largest public transport project, which comprises construction of a metro, a bus system and other transport services in Riyadh.Construction of the Riyadh metro started in April 2014 and is expected to be completed by 2018.The metro project will be owned and operated by the Arriyadh Development Authority (ADA). The project will have an execution period of five years and an optional maintenance service period for the next ten years. It is expected to create about 15,000 jobs in Saudi Arabia.

Riyadh metro project history

The RPTP's plan was developed by the High Commission for the Development of Arriyadh. The plan received approval from the Riyadh Council of Ministers in April 2012.The RPTP project will also include construction of a bus network. The bus network will be an 85km three-line Bus Rapid Transport (BRT) network which will connect major places of Riyadh. All stations of the metro will be integrated with the bus network.

Lines / routes of the Saudi Arabian transport project

The Riyadh metro will be 178km long with six lines and 85 stations including underground, elevated and at-grade sections.

Line 1 (Blue Line) will run from Olaya Street to Al Hayer Road. It will be 44km long and will cover 39 stations.

Line 2 (Green Line) will connect King Abdullah Road to the King Fahad Stadum. It will have 14 stations and be 22km long.

Line 3 (Red Line) will run from Madina Al Munawra to Rahman Al Awal Road. It will be the longest line of the metro, at 45km.

Line 4 (Orange Line) will run from the King Khaled International Airport to the new King Abdullah Financial District (KAFD).

Line 5 (Yellow Line) will start from the King Abdul Aziz Road. It will be 26km long and have 26 stations.

Line 6 (Purple Line) will connect Abdul Rahman bin Ouf Street to the Shaikh Hassan bin Hussain bin Ali Street. It will be 30km long and will feature nine stations.

Major stations of Riyadh's public transport project

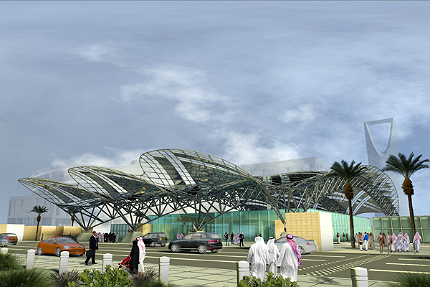

ADA selected three architecture firms to design and build three major stations of the metro. The three stations are the Olaya Metro Station, the Downtown Metro Station and the King Abdullah Financial District Metro Station.

Gerber Architekten will design the Olaya Metro Station. The station will be located at the intersection of the Metro Lines 1 and 2. The station will feature a public plaza, a large entrance hall and an open concourse. The station will have a gross floor area of 68.85m² and a gross volume of 387m³. ADA is expected to invest $20m in the station.

Snohetta will design the Downtown station (Qasr Al Hokm). The station will be located between the Al Madinah Al Munnawarah Street and King Faisal Street. The station will act as a transport hub for the metro lines 1 and 3.

Zaha Hadid was selected to design and build King Abdullah Financial District (KAFD) Metro Station. The station is located at the east of the Northern Ring Road and slightly west of the King Fahad Road. It will serve the lines 1, 4 and 6 of the metro.

Renewable energy will be the source of power for all the metro stations.

Contractors involved with the Riyadh metro project

ADA awarded the design and construction contract of the Riyadh metro to three consortiums BACS, ANM and FAST, in August 2013.

The BACS consortium includes Bechtel, Almabani General Contractors, Consolidated Contractors Company and Siemens. The consortium is led by Bechtel and will design and construct the metro lines 1 and 2. It will also be responsible for the train cars, signalling, electrification and integration of the lines to the metro network. The contract value is $9.4bn about $10bn.

ANM's contract worth $5.2bn includes construction of Line 3 of the metro, Qasr Al Hokom station and Western Station. The ArRiyadh New Mobility (ANM) consortium includes Ansaldo STS, Salini-Impregilo, Larsen & Toubro, Nesma and Bombardier. Larsen & Toubro and Nesma will provide civil works services, Bombardier will look after the procurement of the vehicles and Ansaldo STS will provide technology support services for the Line 3.

Ansaldo STS will also provide signalling support services, ATC (Automation Train Control) and CBTC (Communication Based Train Control) and other telecommunication services. The contract value for Ansaldo STS is $680m with an option to add $249m for maintenance of the Line 3 for the next ten years.

FAST, which is led by FCC Construccion, received a $7.9bn contract to construct and design lines 4, 5 and 6 of the metro. The consortium includes FCC Construccion, Samsung, Alstom, Strukton, Freyssinet Saudi Arabia, Typsa and Setec. The scope of contract includes construction of 64.6km of rail track, 29.8km of viaducts, 26.6km of underground track and 8.2km of over ground track.

Underground tunnels will be built with the help of three tunnel boring machines (TBM). The tunnels will have a diameter of 10m to facilitate the three metro lines. The $7.9bn will be financed through the Public Investment Fund of the Government of Saudi Arabia.

Alstom will provide its automated driverless metro system for the metro project under a $1.5bn (€1.2bn) worth contract.

Elastomeric bearing supplier for the metro system in Riyadh.

Pretread.com from manufacturing plant in middle east dubai rak has been approved supplier for elastomeric bridge bearing for Riyadh Metro

Different sizes of Laminated Elastomeric bearings  - Type C EN 1337  - used for elevated viaducts have been developed by pretread.com for initial testing and type testing, where it was proven through tests to give friction coefficient > 0.5  -  precondition of designers. -between concrete surface  and bearings, which never could have been achieved with elastomeric bearings.

Being  first laminated bearing manufacturing facility in Middle East established from 1999 to have an in-house bearing testing facility to carry out tests confirming to AASHTO /EN specification and one and only Middle East manufacture to supply bearings for Dubai Metro. Under one roof with stringent quality control, ISO certification for  design manufacturing and testing  with technical and marketing support from Technical Partners we were able to attain such a state in quality assurances.
